Dismantling Joint



Dismantling Joint

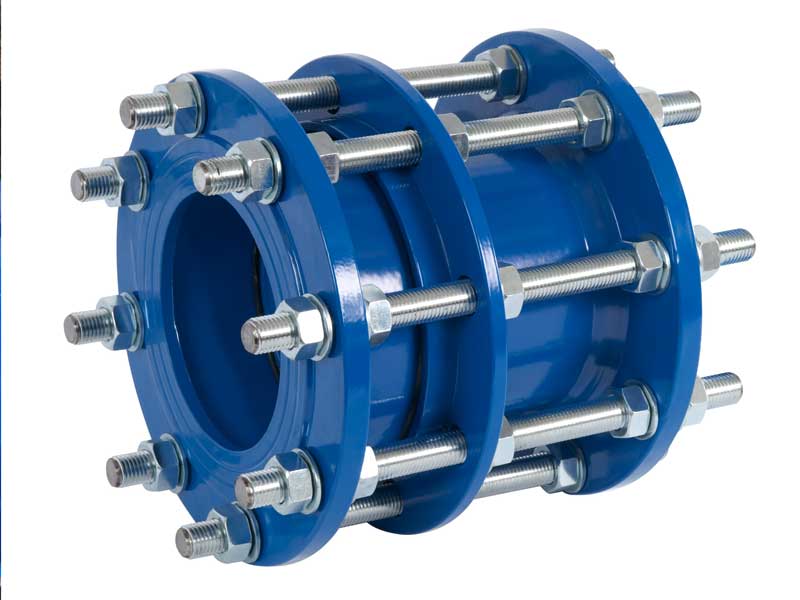

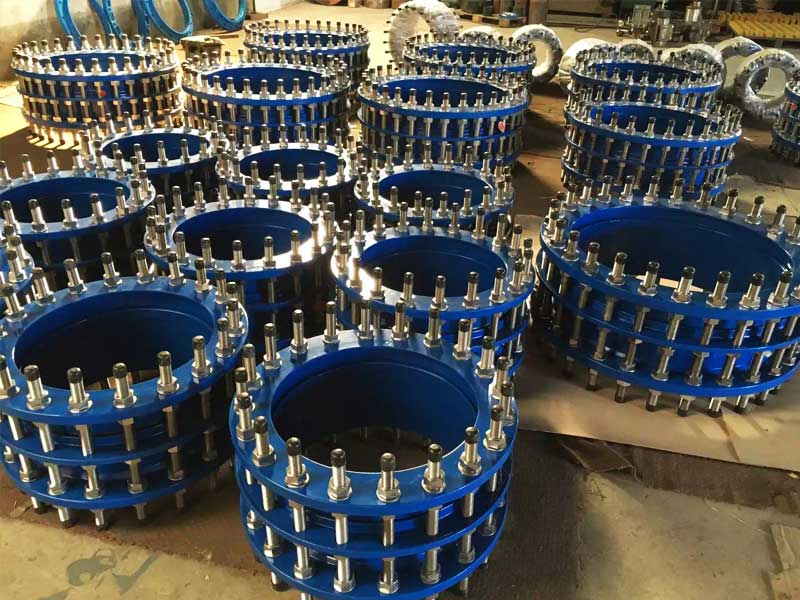

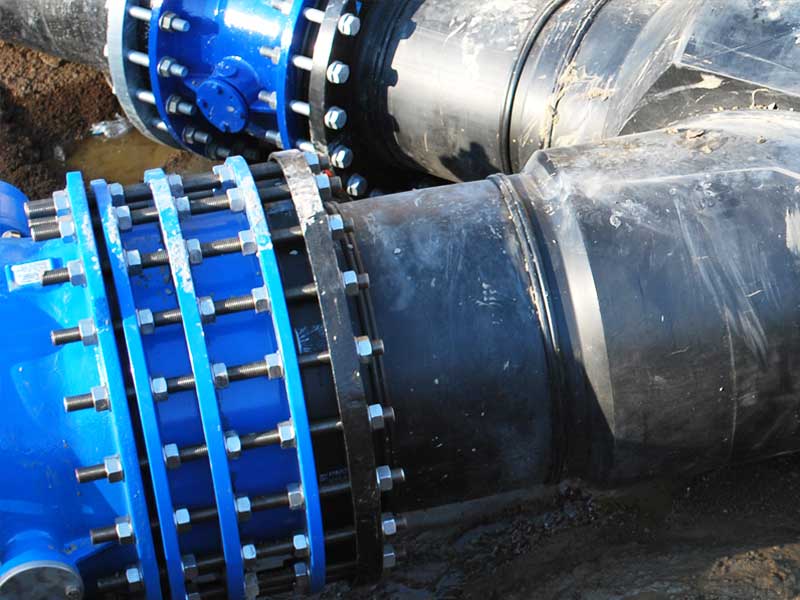

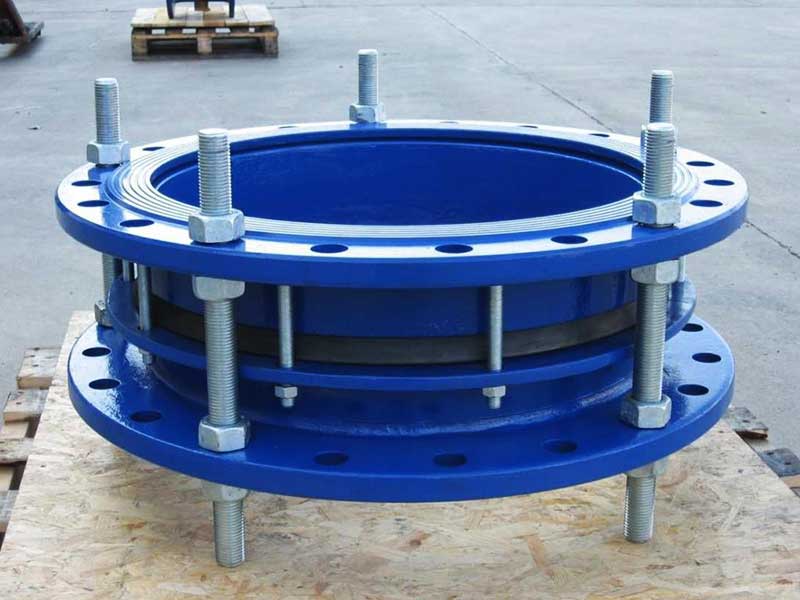

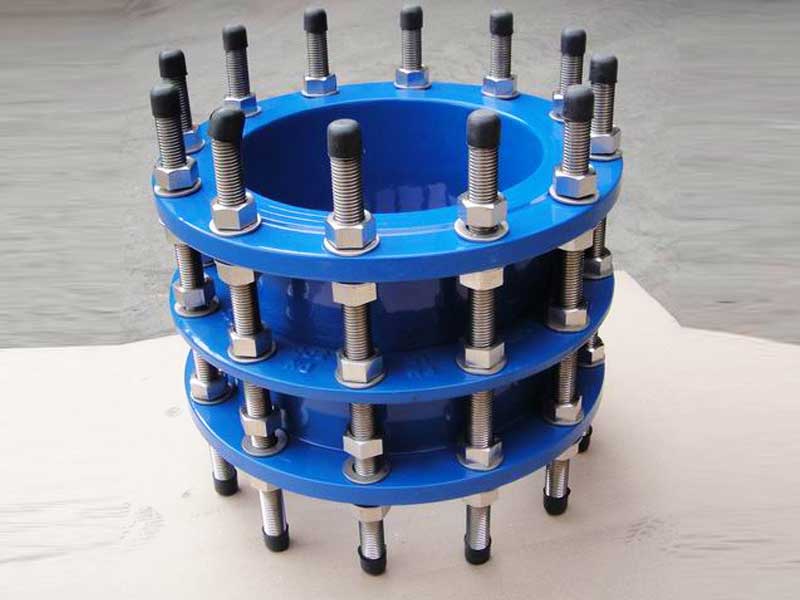

Dismantling joints are produced by AKA in different sizes for various pressures with epoxy coating. Dismantling joint is used for installation or removal of valve, pumps or any flanged parts in pipelines. It is manufactured in two types of rigid or non-rigid and in sizes from 100 mm to 3000 mm.

Dismantling Joint-Rigid

Dismantling-Rigid
PN10
DN Flange Average L Adjustability
± X		 Sealing Ring
Size		 Approx Weight
(Kg)
Diameter
D		 Pitch Circle Dia.
K		 Bolt
M N Length
100 220 180 16 8 310 200 25 1 23
125 250 210 16 8 310 200 25 1 29
150 285 240 20 8 320 200 25 1 39
200 340 295 20 8 340 220 25 1 48
250 395 350 20 12 360 220 25 2 72
300 445 400 20 12 360 220 25 2 80
350 505 460 20 16 360 230 25 2 107
400 565 515 24 16 370 230 25 3 138
450 615 565 24 20 390 250 25 3 154
500 670 620 24 20 410 260 25 3 178
550 730 675 27 20 410 260 25 4 215
600 780 725 27 20 410 260 25 4 226
650 835 780 27 24 410 260 25 4 261
700 895 840 27 24 410 260 25 4 286
800 1015 950 30 24 460 290 25 4 391
900 1115 1050 30 28 460 290 25 4 449
1000 1230 1160 33 28 480 290 25 5 495
1100 1340 1270 33 32 480 300 25 5 644
1200 1455 1380 36 32 520 320 25 5 825
1300 1575 1490 39 32 530 340 25 5 1003
1400 1675 1590 39 36 560 360 25 5 1139
1500 1785 1700 39 36 590 380 25 5 1278
1600 1915 1820 45 40 600 390 25 5 1672
1800 2115 2020 45 44 630 400 25 5 2013
2000 2325 2230 45 48 640 410 25 6 2508
2200 2550 2440 52 52 700 430 25 6 3069
2400 2760 2650 52 56 710 440 25 6 3861

                  Unit: mm
PN16
DN Flange Average L Adjustability
± X		 Sealing Ring
Size		 Approx Weight
(Kg)
Diameter
D		 Pitch Circle Dia.
K		 Bolt
M N Length
100 100 180 16 8 310 200 25 1 24
125 125 210 16 8 310 200 25 1 30
150 150 240 20 8 320 200 25 1 40
200 200 295 20 12 340 220 25 1 58
250 250 355 24 12 370 230 25 2 86
300 300 410 24 12 410 250 25 2 103
350 350 470 24 16 410 260 25 2 143
400 400 525 27 16 430 270 25 3 178
450 450 585 27 20 430 270 25 3 209
500 500 650 30 20 440 280 25 3 264
550 550 710 30 20 440 280 25 4 292
600 600 770 33 20 480 300 25 4 369
650 650 790 33 24 480 300 25 4 385
700 700 840 33 24 480 300 25 4 407
800 800 950 36 24 520 320 25 4 528
900 900 1050 36 28 520 320 25 4 605
1000 1000 1170 39 28 560 340 25 5 792
1100 1100 1270 39 32 560 340 25 5 902
1200 1200 1390 45 32 600 360 25 5 1221
1300 1300 1490 45 32 610 370 25 5 1353
1400 1400 1590 45 36 630 380 25 5 1496

                  Unit: mm
PN25
DN Flange Average L Adjustability
± X		 Sealing Ring
Size		 Approx Weight
(Kg)
Diameter
D		 Pitch Circle Dia.
K		 Bolt
M N Length
100 235 190 20 8 340 220 25 1 36
125 270 220 24 8 370 220 25 1 51
150 300 250 24 8 370 230 25 1 59
200 360 310 24 12 370 230 25 1 86
250 425 370 27 12 410 250 25 2 111
300 485 430 27 16 410 250 25 2 154
350 555 490 30 16 440 270 25 2 216
400 620 550 33 16 480 280 25 3 273
450 670 600 33 20 480 280 25 3 309
500 730 660 33 20 480 300 25 3 360
550 785 710 36 20 520 300 25 4 418
600 845 770 36 20 520 320 25 4 480
650 895 820 36 24 520 320 25 4 561
700 960 875 39 24 530 340 25 4 638
800 1085 990 45 24 600 360 25 4 880
900 1185 1090 45 28 600 380 25 4 1012
1000 1320 1210 52 28 650 400 25 5 1408
1200 1530 1420 52 32 720 450 25 5 2057

                  Unit: mm

Dismantling Joint-Non Rigid

Dismantling--non-rigid
PN10
DN Flange Approx Weight
(Kg)
Diameter
D		 Pitch Circle Dia.
K		 Bolt Average L Adjustability
± X		 Sealing Ring
Size
M N
100 220 180 18 8 300 40 1 24
125 250 210 18 8 300 40 1 31
150 285 240 23 8 300 40 1 36
200 340 295 23 8 300 40 1 55
250 395 350 23 12 350 50 2 82
300 445 400 23 12 350 50 2 100
350 505 460 23 16 350 50 2 118
400 565 515 27 16 380 50 3 146
450 615 565 27 20 380 50 3 156
500 670 620 27 20 380 50 3 176
550 730 675 30 20 380 50 4 196
600 780 725 30 20 380 50 4 234
650 835 780 30 24 380 50 4 263
700 895 840 30 24 380 50 4 293
800 1015 950 33 24 380 50 4 365
900 1115 1050 33 28 380 50 4 418
1000 1230 1160 36 28 380 50 5 484
1100 1340 1270 36 32 380 50 5 576
1200 1455 1380 39 32 400 50 5 739
1300 1575 1490 42 32 400 50 5 852
1400 1675 1590 42 36 400 50 5 985
1500 1785 1700 42 36 400 50 5 1108
1600 1915 1820 48 40 400 50 5 1266
1800 2115 2020 48 44 450 50 5 1584
2000 2325 2230 48 48 450 50 6 2088
2200 2550 2440 56 52 450 50 6 2628
2400 2760 2650 56 56 450 50 6 3180

                Unit: mm



PN16
DN Flange Approx Weight
(Kg)
Diameter
D		 Pitch Circle Dia.
K		 Bolt Average L Adjustability
± X		 Sealing Ring
Size
M N
100 220 180 16 8 300 40 1 25
125 250 210 16 8 300 40 1 31
150 285 240 20 8 300 40 1 38
200 340 295 20 12 300 40 1 58
250 405 355 24 12 350 50 2 84
300 460 410 24 12 350 50 2 108
350 520 470 24 16 350 50 2 126
400 580 525 27 16 380 50 3 168
450 640 585 27 20 380 50 3 180
500 715 650 30 20 380 50 3 204
550 775 710 30 20 380 50 4 246
600 840 770 33 20 380 50 4 294
650 860 790 33 24 380 50 4 318
700 910 840 33 24 380 50 4 342
800 1025 950 36 24 380 50 4 396
900 1125 1050 36 28 390 50 4 468
1000 1255 1170 39 28 390 50 5 588
1100 1355 1270 39 32 400 50 5 648
1200 1485 1390 45 32 400 50 5 852
1300 1585 1490 45 32 400 50 5 984
1400 1685 1590 45 36 400 50 5 1092

                Unit: mm
PN25
DN Flange Approx Weight
(Kg)
Diameter
D		 Pitch Circle Dia.
K		 Bolt Average L Adjustability
± X		 Sealing Ring
Size
M N
100 235 190 22 8 300 40 1 36
125 270 220 26 8 300 40 1 51
150 300 250 26 8 300 40 1 65
200 360 310 26 12 300 40 1 94
250 425 370 30 12 350 50 2
300 485 430 30 16 350 50 2 169
350 555 490 33 16 350 50 2 237
400 620 550 36 16 380 50 3 300
500 730 660 36 20 380 50 3 340
550 785 710 39 20 380 50 4 396
600 865 770 39 20 400 50 4 460
650 895 820 39 24 400 50 4 528
700 960 875 42 24 400 50 4 617
800 1085 990 48 24 400 50 4 702
900 1185 1090 48 28 450 50 4 968
1000 1320 1210 56 28 450 50 5 1113
1200 1530 1420 56 32 450 50 5 1549

                Unit: mm

Please contact us for specifications or ordering products with larger diameters
