Elbow – AKA Industrial Group

Elbow Fabricated 45°STD & XS

45-Elbow-STD-(Long-&-Short)

ANSI B16.9
Nominal Pipe Size		STD			XS		Center to End
Nominal Pipe Size		Outside Diameter	Inside Diameter	Wall Thickness	Inside Diameter	Wall Thickness	Center to End
inch	mm	OD	ID	T	ID	T	C
26	650	26	25/250	0/375	25	0/5	16
28	700	28	27/250	0/375	27	0/5	17 ¹/₄
30	750	30	29/250	0/375	29	0/5	18 ¹/₂
32	800	32	31/250	0/375	31	0/5	19 ³/₄
34	850	34	33/250	0/375	33	0/5	21
36	900	36	35/250	0/375	35	0/5	22 ¹/₄
38	950	38	37/250	0/375	37	0/5	23 ⁵/₈
40	1000	40	39/250	0/375	39	0/5	24 ⁷/₈
42	1050	42	41/250	0/375	41	0/5	26
44	1100	44	43/250	0/375	43	0/5	27 ³/₈
46	1150	46	45/250	0/375	45	0/5	28 ⁵/₈
48	1200	48	47/250	0/375	47	0/5	29 ⁷/₈
52	1300	52	51/250	0/375	51	0/5	32 ⁵/₁₆
54	1350	54	53/250	0/375	53	0/5	33 ⁹/₁₆
56	1400	56	55/250	0/375	54/8	0/6	34 ²⁵/₃₂
60	1500	60	59/250	0/375	58/8	0/6	37 ⁹/₃₂
64	1600	64	63/250	0/375	62/8	0/6	39 ³/₄
68	1700	68	67/250	0/375	66/8	0/6	42 ¹/₄
72	1800	72	71/250	0/375	70/8	0/6	44 ³/₄
76	1900	76	75/250	0/375	74/8	0/6	47 ⁷/₃₂
80	2000	80	79/250	0/375	78/8	0/6	49 ²³/₃₂

						Unit: inches

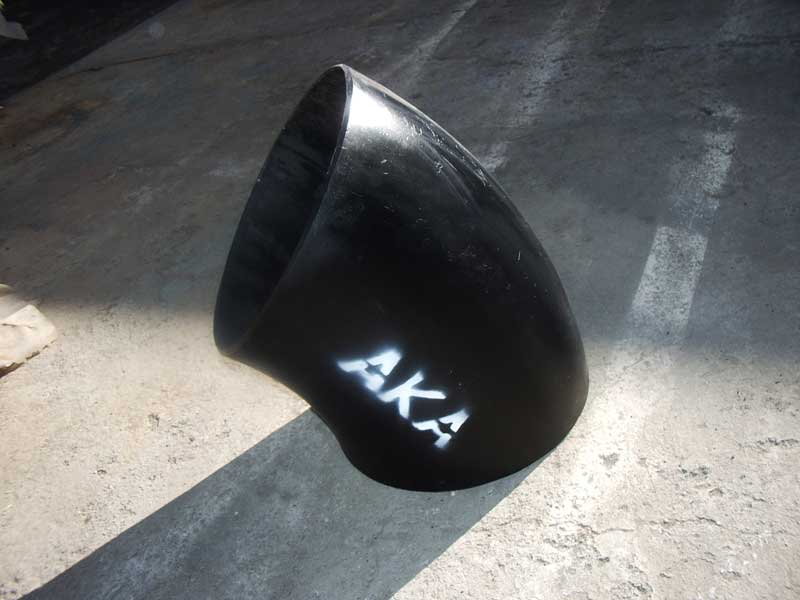

Elbow 45°STD & XS

45-Elbow-STD-&-XS-(Long)

ANSI B16.9
Nominal Pipe Size		O.D.	Center to End C	STD		XS
inch	mm	O.D.	Center to End C	I.D.	T	I.D.	T
4	100	4.500	2/50	4/026	0/237	3/826	0/337
5	125	5.563	3/120	5/047	0/258	4/813	0/375
6	150	6.625	3/75	6/065	0/280	5/761	0/432
8	200	8/625	5/000	7/981	0/322	7/625	0/500
10	250	10/750	6/25	10/020	0/365	9/750	0/500
12	300	12/75	7/500	12	0/375	11/750	0/500
14	350	14/000	8/75	13/250	0/375	13/000	0/500
16	400	16	10/000	15/25	0/375	15/000	0/500
18	450	18/000	11/25	17/250	0/375	17/000	0/500
20	500	20	12/500	19/25	0/375	19/000	0/500
22	550	22/000	13/50	21/250	0/375	21/000	0/500
24	600	24	15/000	23/25	0/375	23/000	0/500
26	650	26/000	16/00	25/250	0/375	25/000	0/500
28	700	28	17/250	27/25	0/375	27/000	0/500
30	750	30/000	18/50	29/250	0/375	29/000	0/500
32	800	32	19/750	31/25	0/375	31/000	0/500
36	900	36/000	22/25	35/250	0/375	35/000	0/500

						Unit: inches

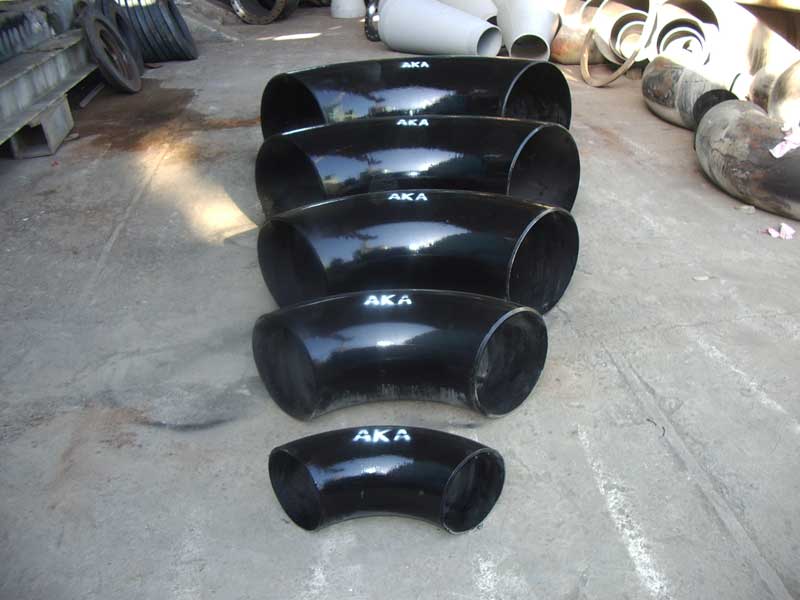

Elbow 90°STD & XS

90-Elbow-STD-&-XS-(Long)

ANSI B16.9
Nominal Pipe Size		O.D.	Center to End C	STD		XS
inch	mm	O.D.	Center to End C	I.D.	T	I.D.	T
4	100	4.500	6/000	4/026	0/237	3/826	0/337
5	125	5.563	7/50	5/047	0/258	4/813	0/375
6	150	6.625	9/000	6/065	0/28	5/761	0/432
8	200	8/625	12/00	7/981	0/322	7/625	0/500
10	250	10/75	15/000	10/02	0/365	9/750	0/500
12	300	12/75	18/00	12/000	0/375	11/750	0/500
14	350	14	21/000	13/25	0/375	13/000	0/500
16	400	16/000	24/00	15/250	0/375	15/000	0/500
18	450	18	27/000	17/25	0/375	17/000	0/500
20	500	20/000	30/00	19/250	0/375	19/000	0/500
22	550	22	33/000	21/25	0/375	21/000	0/500
24	600	24/000	36/00	23/250	0/375	23/000	0/500
26	650	26	39/000	25/25	0/375	25/000	0/500
28	700	28/000	42/00	27/250	0/375	27/000	0/500
30	750	30	45/000	29/25	0/375	29/000	0/500
32	800	32/000	48/00	31/250	0/375	31/000	0/500
36	900	36	54/000	32/25	0/375	35/000	0/500

						Unit: inches

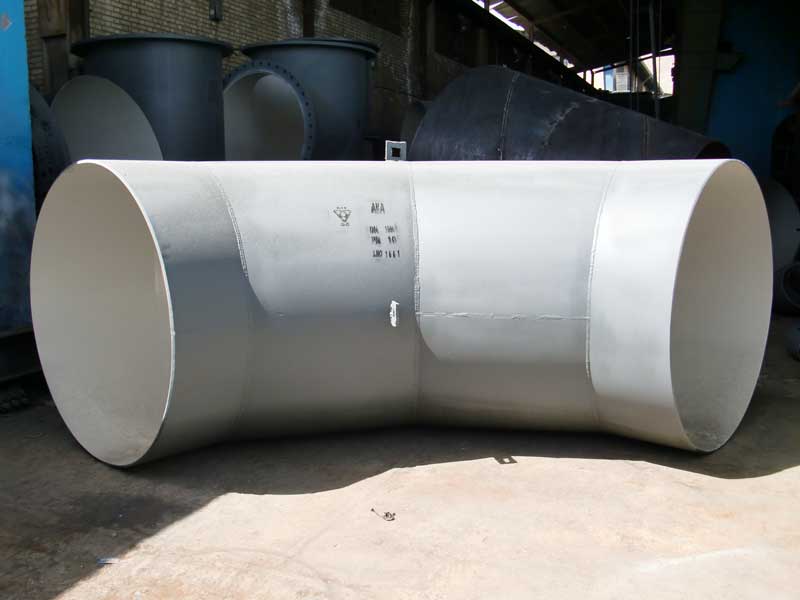

Elbow Fabricated 90°STD & XS

90-Elbow-STD-(Long)

ANSI B16.9
Nominal Pipe Size		STD			XS		Center to End
Nominal Pipe Size		Outside Diameter	Inside Diameter	Wall Thickness	Inside Diameter	Wall Thickness	Center to End
inch	mm	OD	ID	T	ID	T	C Long	C Short
26	650	26	25/25	0/375	25	0/5	39	26
28	700	28	27/25	0/375	27	0/5	42	28
30	750	30	29/25	0/375	29	0/5	45	30
32	800	32	31/25	0/375	31	0/5	48	32
34	850	34	33/25	0/375	33	0/5	51	34
36	900	36	35/25	0/375	35	0/5	54	36
38	950	38	37/25	0/375	37	0/5	57	38
40	1000	40	39/25	0/375	39	0/5	60	40
42	1050	42	41/25	0/375	41	0/5	63	42
44	1100	44	43/25	0/375	43	0/5	66	46
46	1150	46	45/25	0/375	45	0/5	69	48
48	1200	48	47/25	0/375	47	0/5	72	52
52	1300	52	51/25	0/375	51	0/5	78	54
54	1350	54	53/25	0/375	53	0/5	81	56
56	1400	56	55/25	0/375	54/8	0/6	84	60
60	1500	60	59/25	0/375	58/8	0/6	90	64
64	1600	64	63/25	0/375	62/8	0/6	96	68
68	1700	68	67/25	0/375	66/8	0/6	102	72
72	1800	72	71/25	0/375	70/8	0/6	108	74
76	1900	76	75/25	0/375	74/8	0/6	114	76
80	2000	80	79/25	0/375	78/8	0/6	120	80

							Unit: inches

Please contact us for specifications or ordering products with larger diameters
