زانو (Elbow)

Elbow Fabricated 45-Degree STD & XS

45-Elbow-STD-(Long-&-Short)
ANSI B16.9
Nominal Pipe Size STD XS Center to End
Outside Diameter Inside Diameter Wall Thickness Inside Diameter Wall Thickness
inch mm OD ID T ID T C
26 650 26 25/250 0/375 25 0/5 16
28 700 28 27/250 0/375 27 0/5 17 1/4
30 750 30 29/250 0/375 29 0/5 18 1/2
32 800 32 31/250 0/375 31 0/5 19 3/4
34 850 34 33/250 0/375 33 0/5 21
36 900 36 35/250 0/375 35 0/5 22 1/4
38 950 38 37/250 0/375 37 0/5 23 5/8
40 1000 40 39/250 0/375 39 0/5 24 7/8
42 1050 42 41/250 0/375 41 0/5 26
44 1100 44 43/250 0/375 43 0/5 27 3/8
46 1150 46 45/250 0/375 45 0/5 28 5/8
48 1200 48 47/250 0/375 47 0/5 29 7/8
52 1300 52 51/250 0/375 51 0/5 32 5/16
54 1350 54 53/250 0/375 53 0/5 33 9/16
56 1400 56 55/250 0/375 54/8 0/6 34 25/32
60 1500 60 59/250 0/375 58/8 0/6 37 9/32
64 1600 64 63/250 0/375 62/8 0/6 39 3/4
68 1700 68 67/250 0/375 66/8 0/6 42 1/4
72 1800 72 71/250 0/375 70/8 0/6 44 3/4
76 1900 76 75/250 0/375 74/8 0/6 47 7/32
80 2000 80 79/250 0/375 78/8 0/6 49 23/32

            Unit: inches

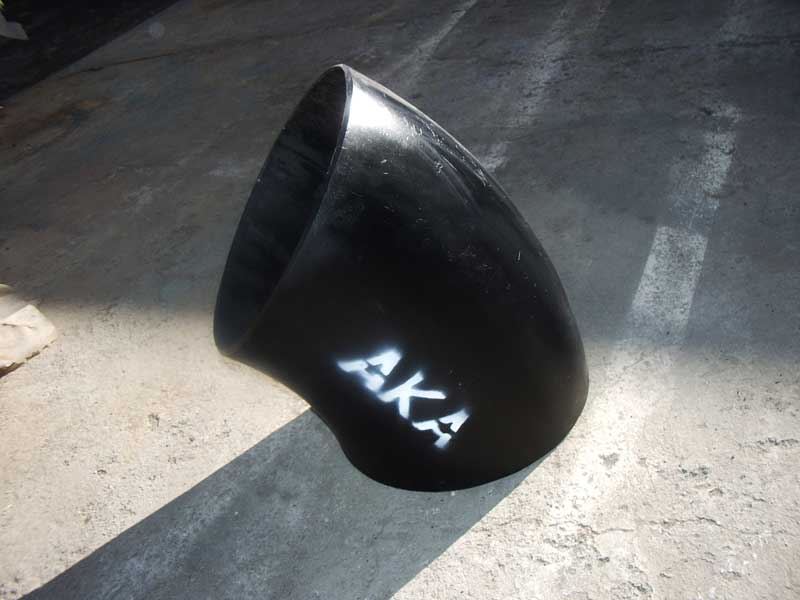

Elbow 45-Degree STD & XS

45-Elbow-STD-&-XS-(Long)
ANSI B16.9
Nominal Pipe Size O.D. Center to End
C		 STD XS
inch mm I.D. T I.D. T
4 100 4.500 2/50 4/026 0/237 3/826 0/337
5 125 5.563 3/120 5/047 0/258 4/813 0/375
6 150 6.625 3/75 6/065 0/280 5/761 0/432
8 200 8/625 5/000 7/981 0/322 7/625 0/500
10 250 10/750 6/25 10/020 0/365 9/750 0/500
12 300 12/75 7/500 12 0/375 11/750 0/500
14 350 14/000 8/75 13/250 0/375 13/000 0/500
16 400 16 10/000 15/25 0/375 15/000 0/500
18 450 18/000 11/25 17/250 0/375 17/000 0/500
20 500 20 12/500 19/25 0/375 19/000 0/500
22 550 22/000 13/50 21/250 0/375 21/000 0/500
24 600 24 15/000 23/25 0/375 23/000 0/500
26 650 26/000 16/00 25/250 0/375 25/000 0/500
28 700 28 17/250 27/25 0/375 27/000 0/500
30 750 30/000 18/50 29/250 0/375 29/000 0/500
32 800 32 19/750 31/25 0/375 31/000 0/500
36 900 36/000 22/25 35/250 0/375 35/000 0/500

            Unit: inches

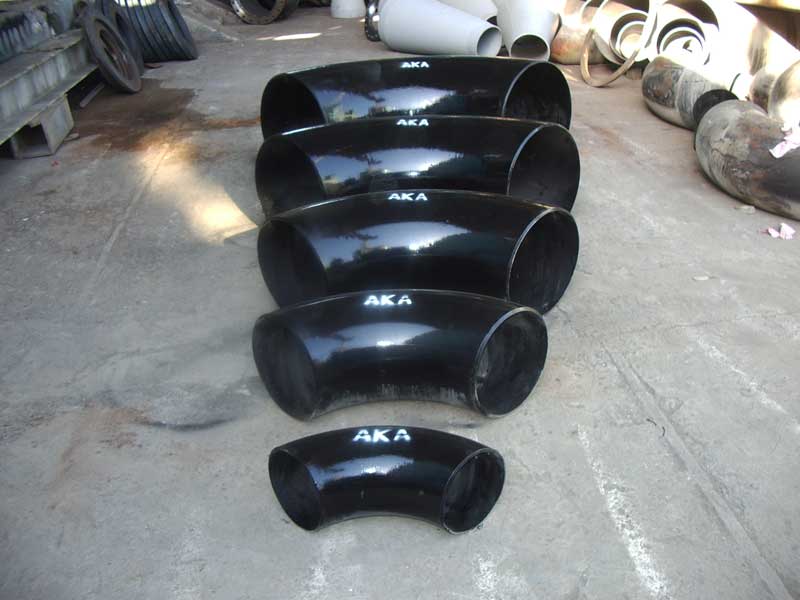

Elbow 90-Degree STD & XS

90-Elbow-STD-&-XS-(Long)
ANSI B16.9
Nominal Pipe Size O.D. Center to End
C		 STD XS
inch mm I.D. T I.D. T
4 100 4.500 6/000 4/026 0/237 3/826 0/337
5 125 5.563 7/50 5/047 0/258 4/813 0/375
6 150 6.625 9/000 6/065 0/28 5/761 0/432
8 200 8/625 12/00 7/981 0/322 7/625 0/500
10 250 10/75 15/000 10/02 0/365 9/750 0/500
12 300 12/75 18/00 12/000 0/375 11/750 0/500
14 350 14 21/000 13/25 0/375 13/000 0/500
16 400 16/000 24/00 15/250 0/375 15/000 0/500
18 450 18 27/000 17/25 0/375 17/000 0/500
20 500 20/000 30/00 19/250 0/375 19/000 0/500
22 550 22 33/000 21/25 0/375 21/000 0/500
24 600 24/000 36/00 23/250 0/375 23/000 0/500
26 650 26 39/000 25/25 0/375 25/000 0/500
28 700 28/000 42/00 27/250 0/375 27/000 0/500
30 750 30 45/000 29/25 0/375 29/000 0/500
32 800 32/000 48/00 31/250 0/375 31/000 0/500
36 900 36 54/000 32/25 0/375 35/000 0/500

            Unit: inches

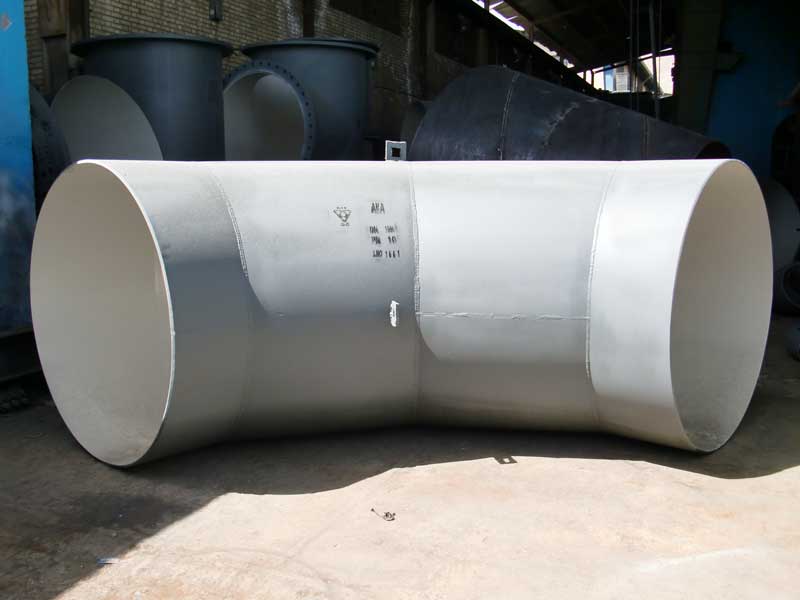

Elbow Fabricated 90-Degree STD & XS

90-Elbow-STD-(Long)
ANSI B16.9
Nominal Pipe Size STD XS Center to End
Outside Diameter Inside Diameter Wall Thickness Inside Diameter Wall Thickness
inch mm OD ID T ID T C Long C Short
26 650 26 25/25 0/375 25 0/5 39 26
28 700 28 27/25 0/375 27 0/5 42 28
30 750 30 29/25 0/375 29 0/5 45 30
32 800 32 31/25 0/375 31 0/5 48 32
34 850 34 33/25 0/375 33 0/5 51 34
36 900 36 35/25 0/375 35 0/5 54 36
38 950 38 37/25 0/375 37 0/5 57 38
40 1000 40 39/25 0/375 39 0/5 60 40
42 1050 42 41/25 0/375 41 0/5 63 42
44 1100 44 43/25 0/375 43 0/5 66 46
46 1150 46 45/25 0/375 45 0/5 69 48
48 1200 48 47/25 0/375 47 0/5 72 52
52 1300 52 51/25 0/375 51 0/5 78 54
54 1350 54 53/25 0/375 53 0/5 81 56
56 1400 56 55/25 0/375 54/8 0/6 84 60
60 1500 60 59/25 0/375 58/8 0/6 90 64
64 1600 64 63/25 0/375 62/8 0/6 96 68
68 1700 68 67/25 0/375 66/8 0/6 102 72
72 1800 72 71/25 0/375 70/8 0/6 108 74
76 1900 76 75/25 0/375 74/8 0/6 114 76
80 2000 80 79/25 0/375 78/8 0/6 120 80

              Unit: inches

جهت دریافت مشخصات و سفارش ساخت سایزهای بزرگتر، با ما تماس بگیرید
