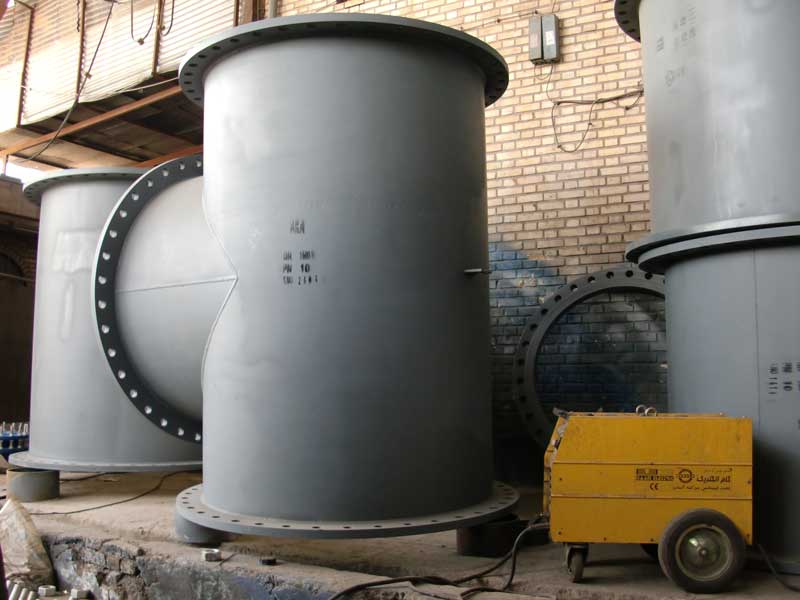

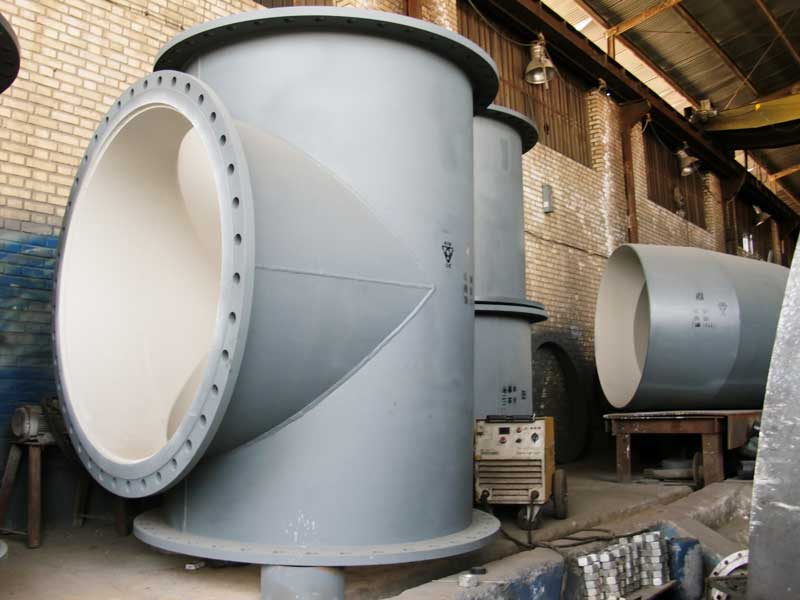

سه راهی T (Reducing/Straight)

T (Reducing)

T (Reducing)
ANSI B16.9
STANDARD WEIGHT (STD) AND (XS)
Nominal Pipe
Size		 Large End Small End Center to End
Outside Diameter
OD1		 STD XS Outside Diameter
OD2		 STD XS
Inside Diameter
ID1		 Wall Thickness
T1		 Inside Diameter
ID1		 Wall Thickness
T1		 Inside Diameter
ID2		 Wall Thickness
T2		 Inside Diameter
ID2		 Wall Thickness
T2		 Run C Outlet M
26 × 26 × 22 26 25/250 0/375 25 0/50 22 21/250 0/375 21 0/50 19 1/2 18 1/2
26 × 26 × 18 26 25/250 0/375 25 0/50 18 17/250 0/375 17 0/50 19 1/2 17 1/2
26 × 26 × 16 26 25/250 0/375 25 0/50 16 15/250 0/375 15 0/50 19 1/2 17
28 × 28 × 24 28 27/250 0/375 27 0/50 24 23/250 0/375 23 0/50 20 1/2 20
28 × 28 × 20 28 27/250 0/375 27 0/50 20 19/250 0/375 19 0/50 20 1/2 19
28 × 28 × 18 28 27/250 0/375 27 0/50 18 17/250 0/375 17 0/50 20 1/2 18 1/2
30 × 30 × 26 30 29/250 0/375 29 0/50 26 25/250 0/375 25 0/50 22 21 1/2
30 × 30 × 22 30 29/250 0/375 29 0/50 22 21/250 0/375 21 0/50 22 20 1/2
30 × 30 × 20 30 29/250 0/375 29 0/50 20 19/250 0/375 19 0/50 22 20
32 × 32 × 28 32 31/250 0/375 31 0/50 28 27/250 0/375 27 0/50 23 1/2 22 1/2
32 × 32 × 24 32 31/250 0/375 31 0/50 24 23/250 0/375 23 0/50 23 1/2 22
32 × 32 × 22 32 31/250 0/375 31 0/50 22 21/250 0/375 21 0/50 23 1/2 21 1/2
34 × 34 × 30 34 33/250 0/375 33 0/50 30 29/250 0/375 29 0/50 25 24
34 × 34 × 26 34 33/250 0/375 33 0/50 26 25/250 0/375 25 0/50 25 23 1/2
34 × 34 × 22 34 33/250 0/375 33 0/50 22 21/250 0/375 21 0/50 25 22 1/2
36 × 36 × 32 36 35/250 0/375 35 0/50 32 31/250 0/375 31 0/50 26 1/2 25 1/2
36 × 36 × 28 36 35/250 0/375 35 0/50 28 27/250 0/375 27 0/50 26 1/2 24 1/2
36 × 36 × 24 36 35/250 0/375 35 0/50 24 23/250 0/375 23 0/50 26 1/2 24
38 × 38 × 34 38 37/250 0/375 37 0/50 34 33/250 0/375 33 0/50 28 27 1/2
38 × 38 × 30 38 37/250 0/375 37 0/50 30 29/250 0/375 29 0/50 28 26 1/2
38 × 38 × 26 38 37/250 0/375 37 0/50 26 25/250 0/375 25 0/50 28 25 1/2

                      Unit: inches
ANSI B16.9
STANDARD WEIGHT (STD) AND (XS)
Nominal Pipe
Size		 Large End Small End Center to End
Outside Diameter
OD1		 STD XS Outside Diameter
OD2		 STD XS
Inside Diameter
ID1		 Wall Thickness
T1		 Inside Diameter
ID1		 Wall Thickness
T1		 Inside Diameter
ID2		 Wall Thickness
T2		 Inside Diameter
ID2		 Wall Thickness
T2		 Run C Outlet M
40 × 40 × 36 40 39/250 0/375 39 0/50 36 35/250 0/375 35 0/50 29 1/2 29
40 × 40 × 32 40 39/250 0/375 39 0/50 32 31/250 0/375 31 0/50 29 1/2 28
40 × 40 × 28 40 39/250 0/375 39 0/50 28 27/250 0/375 27 0/50 29 1/2 26 1/2
42 × 42 × 38 42 41/250 0/375 41 0/50 38 37/250 0/375 37 0/50 30 28
42 × 42 × 34 42 41/250 0/375 41 0/50 34 33/250 0/375 33 0/50 30 28
42 × 42 × 30 42 41/250 0/375 41 0/50 30 29/250 0/375 29 0/50 30 28
44 × 44 × 40 44 43/250 0/375 43 0/50 40 39/250 0/375 39 0/50 32 29 1/2
44 × 44 × 36 44 43/250 0/375 43 0/50 36 35/250 0/375 35 0/50 32 28 1/2
44 × 44 × 32 44 43/250 0/375 43 0/50 32 31/250 0/375 31 0/50 32 28
46 × 46 × 42 46 45/250 0/375 45 0/50 42 41/250 0/375 41 0/50 33 1/2 31
46 × 46 × 38 46 45/250 0/375 45 0/50 38 37/250 0/375 37 0/50 33 1/2 30
46 × 46 × 34 46 45/250 0/375 45 0/50 34 33/250 0/375 33 0/50 33 1/2 29 1/2
48 × 48 × 44 48 47/250 0/375 47 0/50 44 43/250 0/375 43 0/50 35 33
48 × 48 × 40 48 47/250 0/375 47 0/50 40 39/250 0/375 39 0/50 35 32
48 × 48 × 36 48 47/250 0/375 47 0/50 36 35/250 0/375 35 0/50 35 31
52 × 52 × 48 52 51/250 0/375 51 0/50 48 47/250 0/375 47 0/50 38 34
52 × 52 × 44 52 51/250 0/375 51 0/50 44 43/250 0/375 43 0/50 38 32
52 × 52 × 40 52 51/250 0/375 51 0/50 40 39/250 0/375 39 0/50 38 30
56 × 56 × 52 56 55/250 0/375 55 0/50 52 51/250 0/375 51 0/50 41 36
56 × 56 × 48 56 55/250 0/375 55 0/50 48 47/250 0/375 47 0/50 41 34
56 × 56 × 44 56 55/250 0/375 55 0/50 44 43/250 0/375 43 0/50 41 32
60 × 60 × 56 60 59/250 0/375 59 0/50 56 55/250 0/375 55 0/50 44 38
60 × 60 × 52 60 59/250 0/375 59 0/50 52 51/250 0/375 51 0/50 44 36
60 × 60 × 48 60 59/250 0/375 59 0/50 48 47/250 0/375 47 0/50 44 34

                      Unit: inches



T (Straight)

T (Straight)
ANSI B16.9
Nominal Pipe Size Outside Diameter
OD		 Inside Diameter
ID		 Wall Thickness
T		 Center to End Approx. Weight (kg)
inch mm Run C Outlet M
4 100 4/500 4/026 0/237 4 1/8 4 1/8 4/93
5 125 5/563 5/047 0/258 4 7/8 4 7/8 8/16
6 150 6/625 6/065 0/280 5 5/8 5 5/8 10/4
8 200 8/625 7/981 0/322 7 7 23/4
10 250 10/750 10/020 0/365 8 1/2 8 1/2 37/3
12 300 12/750 12/000 0/375 10 10 59/6
12 300 12/750 11/938 0/406 10 10 59/6
14 350 14/000 13/250 0/375 11 11 84/9
14 350 14/000 13/124 0/438 11 11 84/9
16 400 16/000 15/250 0/375 12 12 98/2
16 400 16/000 15/000 0/500 12 12 112/2
18 450 18/000 17/250 0/375 13 1/2 13 1/2 134
18 450 18/000 16/876 0/562 13 1/2 13 1/2 159
20 500 20/000 19/250 0/375 15 15 176
20 500 20/000 18/812 0/594 15 15 208
22 550 22/000 21/250 0/375 16 1/2 16 1/2 240
24 600 24/000 23/250 0/375 17 17 279
24 600 24/000 22/624 0/688 17 17 305

            Unit: inches
ANSI B16.9
Nominal Pipe Size STD XS Center to End
inch mm Outside Diameter
OD		 Inside Diameter
ID		 Wall Thickness
T		 Inside Diameter
ID		 Wall Thickness
T		 Run C Outlet M
26 650 26/000 25/250 0/375 25/000 0/500 19 1/2 19 1/2
28 700 28/000 27/250 0/375 27/000 0/500 20 1/2 20 1/2
30 750 30/000 29/250 0/375 29/000 0/500 22 22
32 800 32/000 31/250 0/375 31/000 0/500 23 1/2 23 1/2
34 850 34/000 33/250 0/375 33/000 0/500 25 25
36 900 36/000 35/250 0/375 35/000 0/500 26 1/2 26 1/2
38 950 38/000 37/250 0/375 37/000 0/500 28 28
40 1000 40/000 39/250 0/375 39/000 0/500 29 1/2 29 1/2
42 1050 42/000 41/250 0/375 41/000 0/500 30 28
44 1100 44/000 43/250 0/375 43/000 0/500 32 30
46 1150 46/000 45/250 0/375 45/000 0/500 33 1/2 31 1/2
48 1200 48/000 47/250 0/375 47/000 0/500 35 33
52 1300 52/000 51/250 0/375 51/000 0/500 38 36
56 1400 56/000 55/250 0/375 55/000 0/500 41 38
60 1500 60/000 59/250 0/375 59/000 0/500 44 40
64 1600 64/000 63/250 0/375 63/000 0/500 47 44

              Unit: inches

جهت دریافت مشخصات و سفارش ساخت سایزهای بزرگتر، با ما تماس بگیرید
